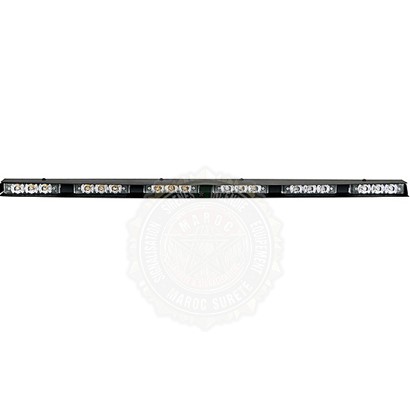

ULB34-1 Starburst Features
(Interior Only)

Perfect for undercover or unmarked vehicle applications

For interior applications only

Six-head 18 high intensity, Star Generation IV LEDs

35 customer selectable flash patterns

Housing designed to fit the curve of the vehicle

 Led Colors

Yellow, Red, Blue, White, Green

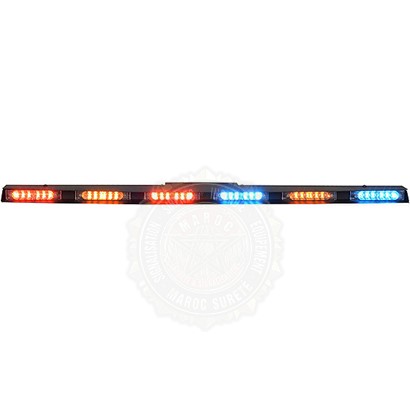

ULB38-TD Dual-Color Features

(Interior Only)

The new Lineum X™ technology offers an all Dual-Color interior Traffic Director undercover bar

Six-head, 72 high intensity, Star Generation IV LEDs

Perfect for undercover or unmarked vehicle applications

31 customer selectable warning flash patterns, 5 phases, and 13 head enable settings

9 Traffic Director patterns

Low power dimming feature

Housing designed to fit the curve of the vehicle

Dual color traffic director/warning light in one

Removable cover for access to flasher DIP switches for Traffic Director or warning mode selection

Traffic Director Color 1: Jaune
Inputs: Left (Note: left + right = center out), right, flash color 1, level 1 pattern - color two LEDs, Level 2 pattern - color 2 LEDs, Pattern/Dim wire
Clone: Duplicate settings for a fleet from 1 unit

Spécifications

ULB34-1-* Starburst Specifications

Hardwire, 15’ length
Ford dimensions: 5 1/2”D x 15/16”H x 30”L
Chevy dimensions: 4 13/32”D x 15/16”H x 30”L
Voltage: 10-16V DC
Weight: 3 lbs.
Amp Draw: 1.86 amps (average), 3.75 amps (max)

ULB38-TD-* Dual-Color Specifications and Features

12’, 8 conductor wire harness
Ford dimensions: 5 1/2”D x 15/16”H x 30”L
Chevy dimensions: 4 13/32”D x 15/16”H x 30”L
Voltage: 10-16V DC
Weight: 4 lbs.
Amp Draw: 3.9 amps (average), 7.8 amps (max)
