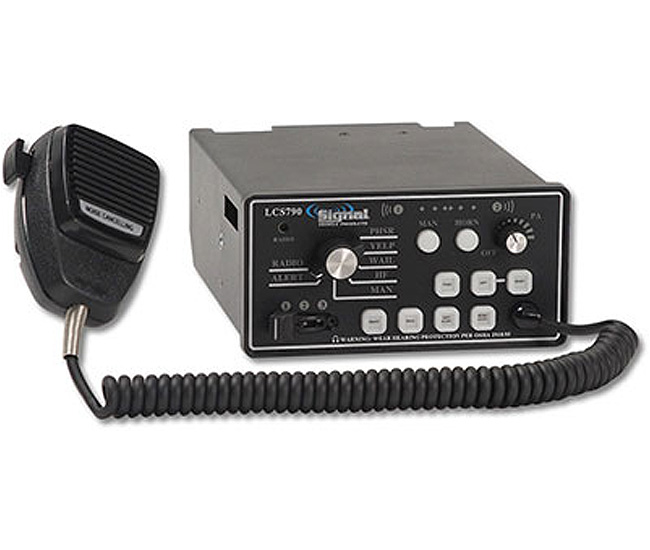

Star Warning System LCS790 - FULL FEATURE W/AUX SWITCHES 200 WATT LCS790

• Over 150 user programmable options
•  LED diagnostics (Speaker drivers active, over/under voltage & lighting functions)
•  Self-resetting circuit protection against speaker shorts
•  Over/under voltage and reverse polarity protection
•  Magnetically isolated radio repeat input
•  Large input filter capacitor for improved performance and reduced vehicle system noise
•  Six siren tone options: Wail, Yelp, Air Horn, Phaser, Manual, and Two Tone
•  Integrated public address microphone, user adjustable from the front face plate
•  Positive or negative switching for AUX and PKILL inputs
•  Euro style connectors allow for easy installation of lighting and siren connections
•  Dual color backlighting on key pad (Green & Red)
•  Four position progressive slide switch with LED indicators
•  Drives one or two 100 Watt speakers

Size: 3"H X 6"W X 8"D
Weight: 7 lbs.
Output: 100 or 200 Watts (1 or 2 speakers)
Voltage: 10V-16V DC
Frequency: 675-1633 Hz
Amp. Draw: 8 Amps (per speaker)
- 20 Amps x 10 Outputs = 200 Amps Max (lighting)
Approvals: SAE J1849, GSA, California Title 13 Class A
