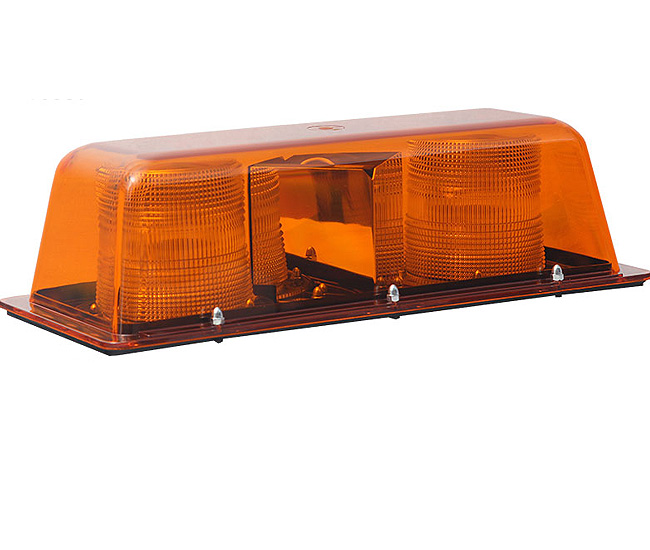

Star Warning System 9200HL - LED MINI-BAR HALO 9200 AMBER OUTER DOME 4 LED

• Star Halo® LED technology is patented (#5,662,702)
• Ultra high intensity LED light that exceeds the latest J845 and California Title 13 standards
• 13 customer selectable flash patterns, including steady-on and a rotating pattern
• S-Link System™ synchronizing capabilities with up to six other Star LED units
• Circuitry is fully encapsulated for increased weather and shock resistance
• Fully gasketed between the durable polycarbonate dome and base
• Two internal V-mirrors, enhance flashes
• Magnet mounts include vinyl pads to avoid scratching surfaces
• Permanent mount - selectable flash patterns via external pattern select wire, 24” leads

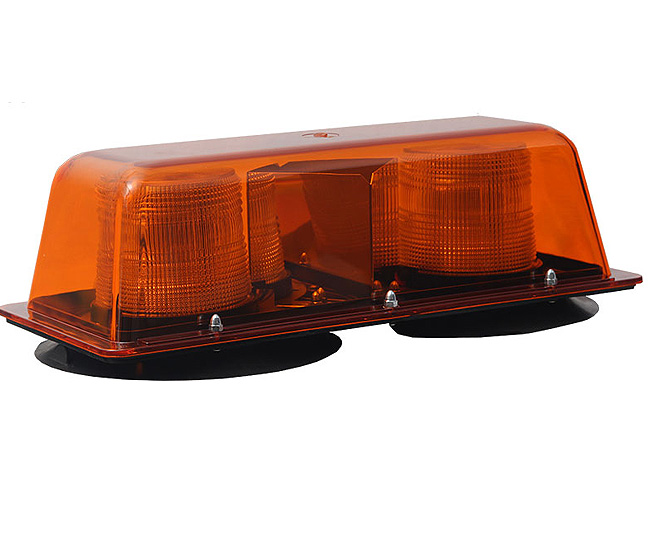

• Magnet and Vacuum magnet mount - selectable flash patterns via switch on cig. plug and separate on/off switch
• Extremely low current draw

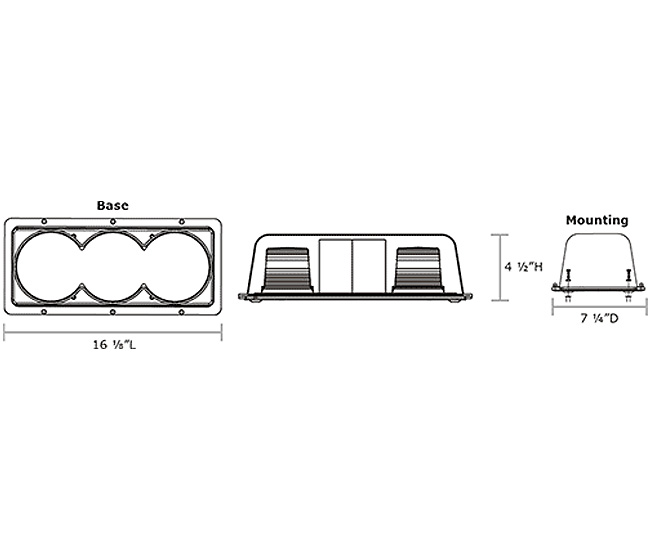

Dimensions: 4-1/2” H x 16-1/8” W x 7-1/4” D (less magnets)
Voltage: Permanent mount: 10 – 30V DC, Magnetic mount: 10 – 16V DC only
Amp Draw: 1.2 Amps @ 12V DC, 0.6 Amps @ 24V DC
Dome Colors: Amber, Blue, Clear, Green, Red, Magenta
Approvals: SAE Class I, California Title 13 (Amber)

Standard Models

9200H8L: SAE Class I, California Title 13, Ultra High Intensity LEDs,
permanent mount
9200H8LM: SAE Class I, California Title 13, Ultra High Intensity LEDs,
magnetic mount
9200H8LV: SAE Class I, California Title 13, Ultra High Intensity LEDs,
vacuum magnetic mount
9200HL: SAE Class I, High Intensity LEDs, permanent mount
9200HLM: SAE Class I, High Intensity LEDs, magnetic mount
9200HLV: SAE Class I, High Intensity LEDs, vacuum magnetic mount

Key:

•  H - High intensity
•  H8 - Ultra high intensity
•  M - Magnet mount
•  V - Vacuum magnet mount
