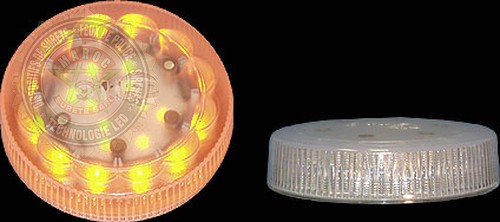

911EP 360-A - 360 STAR - AMBER

Physical Characteristics

Application: Interior or Exterior Use
• Flash Patterns: 30
• Mounting:
- Permanent Mount: Non-switched includes 15 ft. (4.5 m) 6 - wire cable
w/ stripped wire ends (optional 30 ft. cable available)
- Magnetic mount: Switched includes 15 ft. (4.5 m) cable w/ 3-position
rocker switch for On, Off & Pattern Advance
- Mounting Plate Kit #640157: Easier installation for use with Permanent
Mount, screws install from top down instead of bottom (order separately)
- Pole Mount Kit #640157: 3/4 in. to 1 in. (order separately)
• # of LEDs: 12
• Lens: Polycarbonate
• Base: Black Aluminum Die-Cast
• Lens Colors: Amber or Clear
• Colors: Amber, Blue, Red or Red/Blue Split
• Diameter: 7.25 in. (18.5 cm)
• Height: 2.1 in. (5.5 cm)
• Input Voltage Range: 10-15 Vdc
• Stand-by Current Draw (not in use): 0.001 Amp
• Current Draw: 1.5 - 4.5 Amps, depending on color & flash pattern activated
• Shipping Weight: 3.25 lbs.
• Operating Temperature: -40 ˚ to 185˚ F (-40˚ C to 85˚ C)
• Warranty: 2 Year Parts/1 Year Labor
